Cemented Carbide Axle Sleeve , Oil Pump Bushing For Rotating Support

Name: Cemented Carbide Axle Sleeve Oil Pump Bushing For Rotating Support
Brand: ZONCO
Price: 1 USD

Buy cheap Cemented Carbide Axle Sleeve , Oil Pump Bushing For Rotating Support product

Brand Name : ZONCO

Model Number : Customized

Certification : ISO9001:2015

Place of Origin : Zhuzhou

MOQ : 1pcs

Price : Negotiable

Payment Terms : L/C, T/T,

Supply Ability : 10000 piece/pieces per month

Delivery Time : 30-35 working days

Packaging Details : carton or wooden case. Also can be customized as per your requirement.

Type : Sleeve

Application : used for rotating support, aligning, anti-thrust and seal of the axle of motor, centrifuge, protector

Features : excellent wear resistance, good corrosion resistance, high hardness and high strength

Packing : Wooden box

MOQ : 1pcs

OEM service : Acceptable

Contact Now

Product Description

As a typical representative of superhard metals, cemented carbide has been widely used in various industries as for their excellent wear resistance, good corrosion resistance, high hardness and high strength. Carbide axle sleeves are mainly used for rotating support, aligning, anti-thrust and seal of the axle of motor, centrifuge, protector and separator of the submerged electric pump and so on. The demand for high-performance mold products in modern production and manufacturing has become an important reliance for improving production efficiency and promoting economic development. For example, for the petroleum industry, the high-quality products in the equipment manufacturing industry are the basic equipment for ensuring the long-term use of safe operation of petroleum production lines.

Recommended Grade and Properties of Carbide Bushings:

Grade	Binder	Density	Hardness	TRS
Grade	(%)	(g/cm3)	(HRA)	(N/mm2)
ZK6	6	14.8	90.0	1520
ZK6X	6	14.9	91.0	1450
ZK6A	6	14.9	92.0	1540
ZK8	8	14.7	89.5	1750
ZK12	12	14.2	88.0	1810
ZK15	15	14.0	87.0	2050
ZK20	20	13.5	85.5	2450
ZK25	25	12.1	84	2550

Basic Dimension(mm)
φD	φD1	φd	L	L1
41-51	50-55	36-45	5-21	2-5

Products show

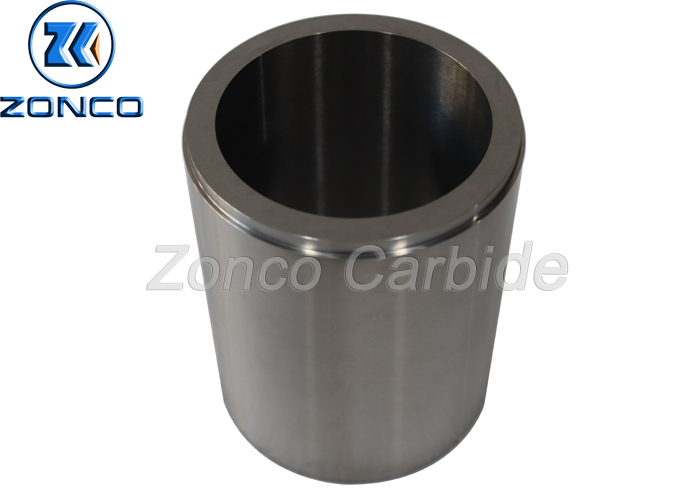

Cemented Carbide Axle Sleeve , Oil Pump Bushing For Rotating Support

Common Alloy Grades, Ghysical Mechanical Properties And Recommended Application
Grade	WC%	Co/Ni %	Physical and mechanical properties			Grain size (μm)	Recommended application
Grade	WC%	Co/Ni %	Density (g/cm3)	TRS (N/mm²)	Hardness (HRA)	Grain size (μm)	Recommended application
ZG01	100	0	15.3-15.5	1200	95.5	0.3	Ultra-high hardness, high wear resistance, anti-corrosion, with certain anti-destructive ability
ZG04X	96	4	15.0-15.2	1600	92.8	0.8-1.0	Suitable for drawing die, non-ferrous metal wire drawing and wear-resistant parts
ZG06	94	6	14.8-15.1	2500	90.0	1.2	Good abrasion resistance, good compression resistance, suitable for wear-resistant parts that resist abrasion and high pressure.
ZG06X	94	6	14.8-15.1	2400	91.5	1.0	Superio wear resistance,good comprehensive properties,suitable for making non-standard structure components with higher wear resistance.
ZG06A	94	6	14.8-15.1	2150	92.5	0.6-0.8
ZG08	92	8	14.6-14.9	2700	89.0	1.2-1.6	Good general performance, used for general wear parts, molds, general tools, etc.
ZG10.2	90	10	14.3-14.6	3800	91.7	0.7	Good general performance, suitable for casing and oil nozzle products
ZG11	89	11	14.3-14.7	2800	88.5	1.2-1.6	Anti-wear, anti-erosion, good comprehensive mechanical strength, suitable for wear-resistant parts in the petroleum, chemical and mechanical industries.
ZG12X	88	12	14.2-14.5	3000	89.5	1.0-1.2	Anti-erosion, good comprehensive mechanical strength, suitable for impact-resistant wear-resistant parts, molds, and roller rings.
ZG15	85	15	13.8-14.2	3000	86.5	1.2-1.6
ZG15X	85	15	13.8-14.2	4500	89.0	0.7	Excellent wear resistance and toughness,it is suitable for making integral stamping dies, anti-vibration toolholders, etc.
ZG20	80	20	13.4-13.8	3100	85.0	1.0	Excellent wear resistance and toughness
ZN06	94	6	14.5-14.9	2000	90.0	1.2	Non-magnetic alloy, suitable for sealing ring, non-magnetic wear-resistant parts and corrosion-resistant parts.
ZN09	91	9	14.3-14.6	2300	89.0	1.2-1.6
ZN11	89	11	14.0-14.3	2600	88.0	1.2
